Sabfoil Flat 425 | Hydrofoil Stabilizer
MAIN SPECS
Surface: 266 cm2
AR: 6,80
Wingspan: 425 mm
Chord: 78 mm
Range: Flat
Stabilizer-Fuselage Connection: Standard
Recommended with front wings 900 - 1500 cm2
This stabilizer makes maneuverability its strong point, thanks to its flat profile and lack of winglets.
The S425/PF is hand sanded to achieve a matte surface with 0-thickness graphics, the SAB Pro Finish, for an elegant Made in Italy product with maximum performance.

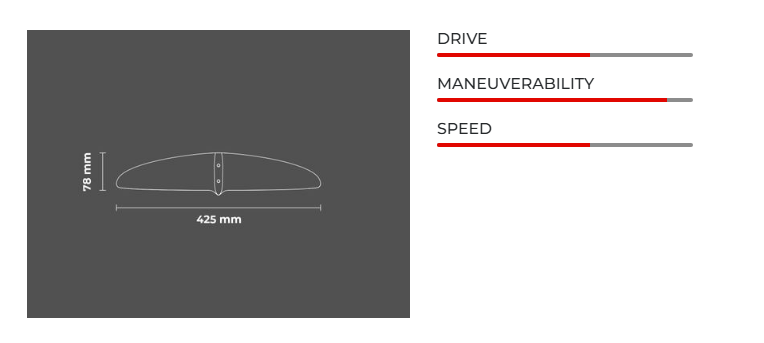

Dimensions & Advanced specs
Stabilizer - Span
425 mm
Stabilizer - Surface
266 cm2
Stabilizer - Root Chord
78 mm
Stabilizer - Aspect Ratio
6,80
Stabilizer - Maximum Thickness
9,5 mm
Stabilizer - Volume
145 cm3
Stabilizer - Weight (ca.)
129 g
Stabilizer - Material
Full Carbon (with core)
